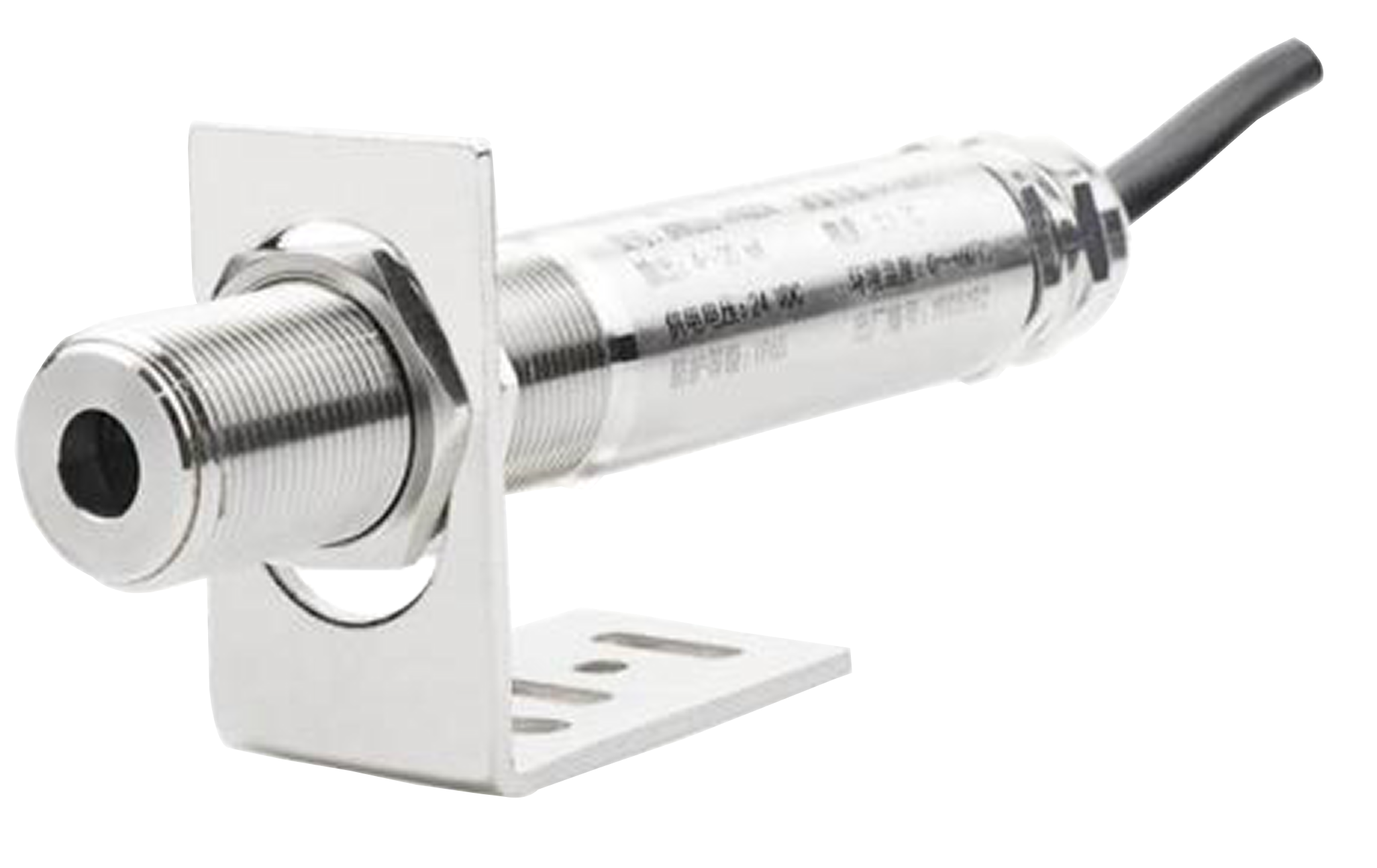

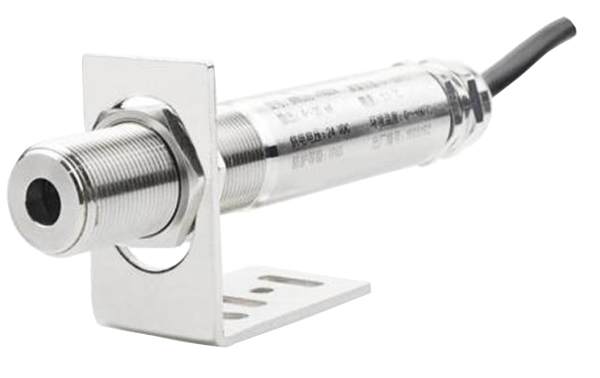

AFT600-400 Infrared thermometer Features ● Exquisite structure, easy to install ● Infrared measurement, no need to contact the object being measured ● Can meet a variety of working conditions: 4~20mA, RS485 output ● Stable output, fast response speed ● Safe to use, long life Product Introduction AFT600-400 Online infrared temperature sensor is a device that uses infrared to measure temperature. It can calculate the surface temperature of an object by measuring the intensity of infrared radiation emitted by the target without contacting the target. The product is widely used in power equipment, metallurgy, construction industry, chemicals and chemical industry and its automatic control and detection systems. For more product information, please refer to the relevant parameters below. Application range Power equipment, medical field Food construction industry, chemicals and chemical industry Temperature monitoring in process and production fields Metallurgy, petrochemical, electric power, light industry, textile industry, food industry, national defense and scientific research fields Technical parameters
|
Related Features
|
Minimum
|
typical
|
maximum
|
unit
|
|
Supply voltage（DC）
|
18
|
24
|
30
|
V
|
|
Range
|
-30
|
—
|
300
|
℃
|
|
Accuracy
|
—
|
±2
|
—
|
℃
|
|
Output method
|
4-20mA/RS485
|
|||
|
Optical resolution
|
20：1
|
|||
|
Emissivity
|
0.95
|
|||
|
Response wavelength
|
8
|
—
|
14
|
um
|
|
Operating temperature
|
-40
|
—
|
85
|
℃
|
|
Maximum allowable humidity（40℃时）
|
—
|
95%
|
—
|
—
|
|
Maximum operating altitude
|
—
|
3000
|
—
|
m
|
