| Model | Discharge power | size | Nominal voltage (V) | Nominal capacity (Ah) | Rated current (mA) | Maximum continuous current (mA) | diameter (mm) | high (mm) | weight (g) | Operating temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|
| ER10450S | Low magnification | AAA | 3.6 | 0.7 | 15 | 25 | 10.8 | 46 | 10 | -40~150 |
| ER14250S | High magnification | 1/2AA | 3.6 | 0.8 | 20 | 40 | 14.5 | 25 | 10 | -40~150 |
| ER14505S | High magnification | AA | 3.6 | 1.6 | 50 | 100 | 14.5 | 49.5 | 18 | -40~150 |
| ER14505S-165 | High magnification | AA | 3.6 | 1.6 | 50 | 100 | 14.1 | 50.5 | 18 | -40~165 |
| ER14505S-180 | High magnification | AA | 3.6 | 1.2 | 50 | 100 | 14.5 | 50.5 | 18 | +50~180 |
| ER14505S-200 | High magnification | AA | 3.6 | 1.2 | 50 | 100 | 14.5 | 50.5 | 18 | +70~200 |
| ER17335S | High magnification | 2/3A | 3.6 | 1.6 | 50 | 100 | 16.8 | 32.8 | 20 | -40~150 |
| ER17505S | High magnification | A | 3.6 | 2.5 | 50 | 100 | 16.8 | 50.5 | 25 | -40~150 |
| ER17505S-165 | High magnification | A | 3.6 | 2.5 | 50 | 100 | 16.8 | 50.5 | 25 | -40~165 |
| ER18505S | High magnification | A | 3.6 | 3.0 | 50 | 100 | 18 | 50.5 | 25 | -40~150 |
| ER17505S-165-2P | High magnification | 2A | 3.6 | 5 | 150 | 300 | 17.5 | 102 | 50 | -40~165 |
| ER26500S | High magnification | C | 3.6 | 6.0 | 100 | 200 | 24.5 | 50.5 | 50 | -40~150 |
| ER26500S-165 | High magnification | C | 3.6 | 5.0 | 100 | 200 | 24.5 | 50 | 50 | -40~165 |
| ER26500S | High magnification | C | 3.6 | 6.0 | 230 | 450 | 25.4 | 50.5 | 60 | -40~150 |
| ER26760S | Medium magnification | 3/2C | 3.6 | 10.5 | 100 | 200 | 25.4 | 76 | 85 | -40~150 |
| ER32615S | High magnification | D | 3.6 | 12 | 500 | 1000 | 32.2 | 61.5 | 108 | -40~150 |

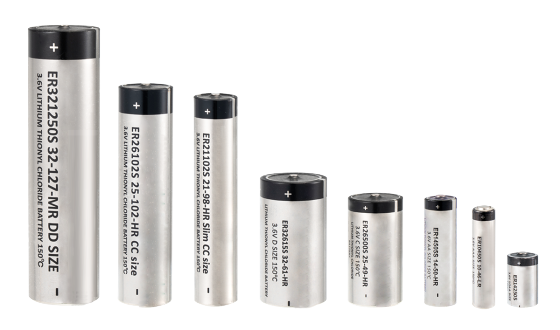

High temperature lithium thionyl chloride battery-cell
Features:
High operating voltage, voltage remains almost constant during 90% of service life Wide temperature range, from -40℃ to +200℃ High impact and vibration resistant design Low self-discharge rate, less than 1% per year Used in oil and gas downhole measurement, pipeline inspection, tracking system, sensor
