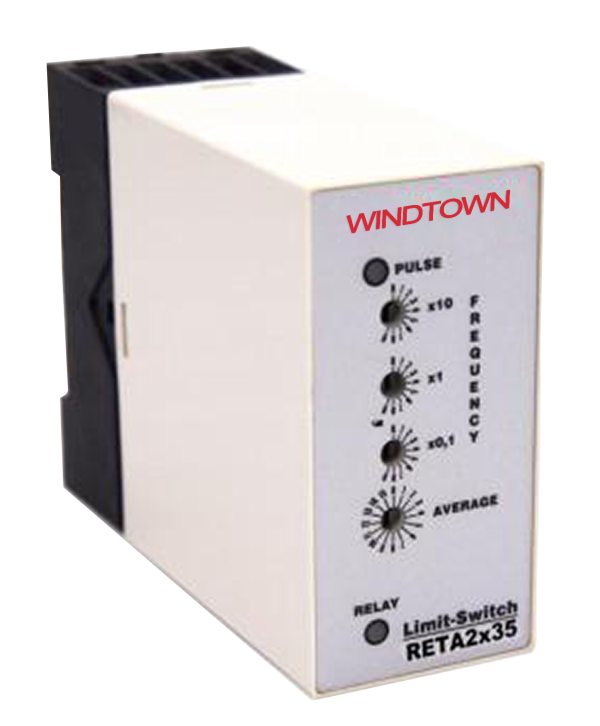

RETA2x35 speed monitoring module Revolution Watch Features ● Real-time monitoring of the rotation of the motor or shaft ● Accurate stop signal ● LED displays the status of the relay ● Automatic reset, easy installation ● Compatible with WP2035 Product Introduction The RETA2X35 speed monitoring module is used in any industrial field, including rotation monitoring of motors, shafts, etc. RETA2X35 is equipped with 3 frequency adjustment switches and 1 average value setting switch. The alarm value can be set at any time as needed, making it easy for users to safely monitor rotating equipment. The rotation frequency range that RETA2X35 can measure is 0-99.9Hz. For more product information, please refer to the relevant parameters below. Technical Parameters
|
Related Features
|
Minimum
|
typical
|
maximum
|
unit
|
|
power supply（DC）
|
18
|
24
|
30
|
V
|
|
Current（DC）
|
—
|
50
|
80
|
mA
|
|
Power consumption
|
—
|
1.4
|
2.4
|
W
|
|
Measuring range
|
0.1
|
—
|
99.9
|
Hz
|
|
Period measurement accuracy (±)
|
0.0005
|
—
|
0.009
|
Hz
|
|
Operating temperature
|
-20
|
—
|
60
|
℃
|
|
Storage temperature
|
-40
|
—
|
85
|
℃
|
|
Maximum allowable humidity（40℃时）
|
—
|
95%
|
—
|
—
|
|
Maximum operating altitude
|
—
|
3000
|
—
|
m
|
